NAVIGATION LIGHTS based on the Light-Emitting Diodes

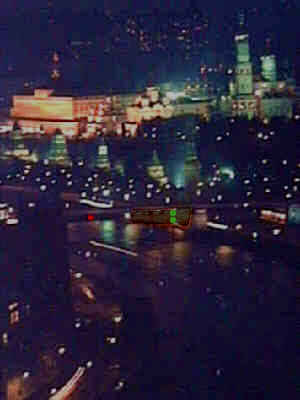

ADVANTAGES The Navigation lights are for marking the path of river traffic, indication of the location and clearance of boat passage ways under bridges, entry and exit lights, long-range lights on canals and locks. Red and green Light-Emitting Diodes (LEDs) used in these lights have approximately 100 times longer useful life and 4-9 times lower power consumption than incandescent or halogen bulbs. The nature of the Signals excludes occasional false signalling caused by the sun beams. The electric circuit of the Signals prevents their complete accidental failure. The «anti-vandal» design of the Traffic Signals permits their high resistance to extreme mechanical and climatic effects. DESIGN Aluminium case. Protective coating of the case with powdery atmosphere-resistant paint. Colourless protective glass made of polycarbonate. Diameter of light aperture of 200 mm. Power Supply : AC U=36 V, f=50/60 Hz. Weight : 4 kg.

TECHNICAL CHARACTERISTICS

Axial luminous intensity of Navigation light: red and green - more than 100 candelas. One-half- peak divergence - more than 20 degrees.
Chromaticity of the radiation is red - X=0,71± 0,02, Y=0,29± 0,03; green - X=0,10±0,07, Y=0,57±0,08.
Power consumption of Navigation light is 12W.
Mean life of Navigation light - 15 years. Warranty period - 5 years.
Storage and operating temperature range : - 40...+ 60° С.
The Navigation light are resistant to high humidity, solar radiation, hoary-frost, corrosion-active agents wind load (the wind speed up to 150 km/hour).
The Navigation lights' protection standard - 1P54.
